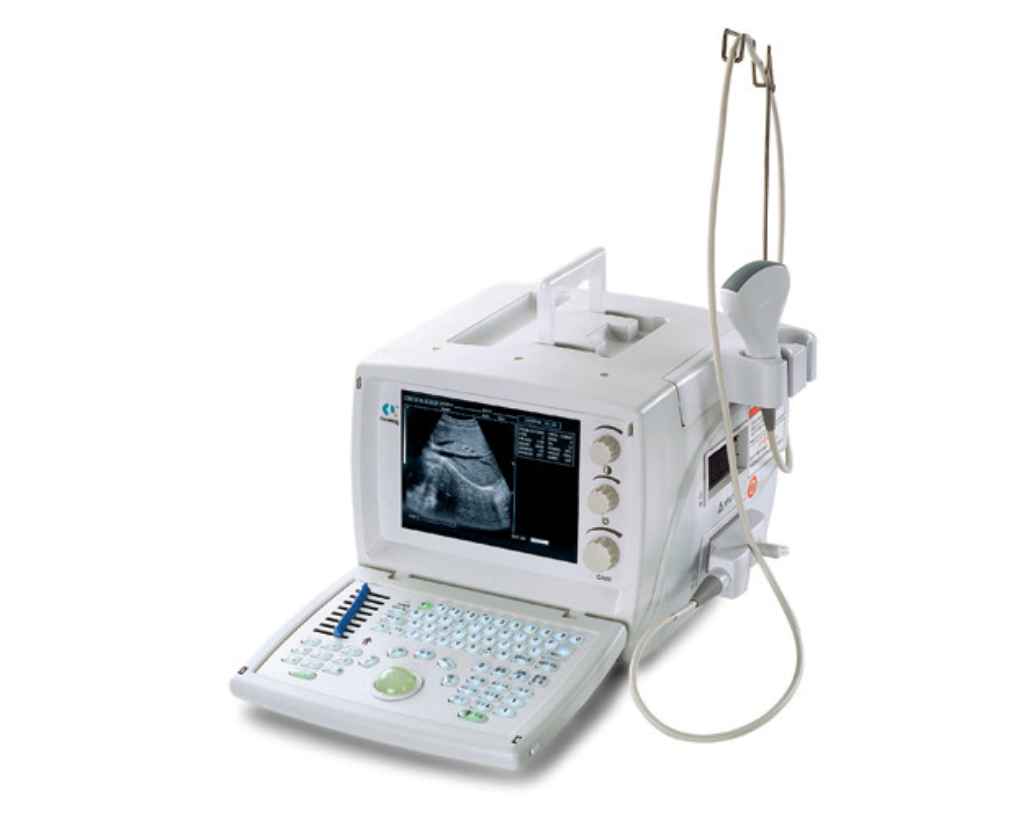

Ultrasound Black & White - 9618

This device is suitable in hospitals and clinics for diagnosing liver, GB, spleen, kidney, pancreas, heart, bladder, and uterus.

Feature:
This device uses micro computer technology, Digital Scanning Converter (DSC), variable aperture, multi-section dynamic focusing, high dynamic low noise and wide band pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement and frame correlation. The embedded components allow a clear, stable and high resolution image.

• Front End with 80 arrays, 20 channels
• Display modes: B, B+B, B+M, M; Gray scales: 256 levels.
• Real time scanning or picture freezing for analysis.
• Image amplification, black-white reversed, up/down conversed and shift depth in Real Time.
• Soft-touching keyboard and track ball to make operation faster, convenient and flexible.
• Video connector, outputting PAL-D standard that can be easily connected to large external monitor, VCR or image printer.
• Portable structured with plastic cover. The use of switch power supply, integrate circuits (FPGA) and Surface Mounting Technology (SMT) makes this device portable with a small volume and light weight.
• This device has passed clinical verifications of safety and diagnosis validity.

Technical Specification:

• Standard probe : 3.5MHz Triple frequency Electronically convex
• Optional probe :

1. L40/7.5MHz Linear Probe
2. L40/7.5MHz EndoRectal Linear
3. R13/6.5MHz Transvaginal Convex Probe

• Scanning depth : 200mm
• Acoustic Power Mode M (C1-2/R60) :
• - P- : 1.0498mpa
• - Iob 1.316mw/cm2
• - Ispta 2.63mw/cm2
• Lateral resolution : ≤ 3mm (depth≤ 80mm) or ≤ 4mm (80mm < depth≤ 130mm)
• Axial resolution : ≤ 2mm (depth ≤ 80mm) or ≤ 3mm (80mm < depth≤ 130mm)
• Dead zone : ≤ 5mm
• Geometric position precision (%) :
• - Horizontal : ≤ 15
• - Vertical : ≤ 10
• Monitor screen : 10" non interlaced, pseudo color processor (see below available options)
• Display mode : B, B+B, B+M, M
• Image gray scale : 256 levels
• Electronically focusing : 4 focus combinations
• Image magnification : 1.0, 1.2, 1.5, 2.0
• Zoom : 2
• Cine-loop : 412 frames included as standard
• Permanent storage : 32 frames
• Pseudo color unit : Included.
• Image reverse : Left/Right, Up/Down, Black/White
• Depth shift : B, B+B modes real time shift
• Frame correlation : B, B+B modes 3 levels
• Measurement functions :
• - B mode: Distance, circumference, area, heart rate, pregnant, Week, fetal weight, EDD
• - M mode: Heart rate, time, EF
• Charactere input/display : date, patients ID, age, sex
• Body marks : 10 types
• Power consumption : 70VA
• Dimensions 353mm x 315mm x 253mm

Environment requirements:

• Temperature : +5°C~+40°C
• Humidity : <80%
• Atmospheric pressure : 70kpa~106kpa
• Power supply : AC/DC Adapter/Charger 110/220V AC ±11/±22V 50/60Hz, Output: DC 10-12V
