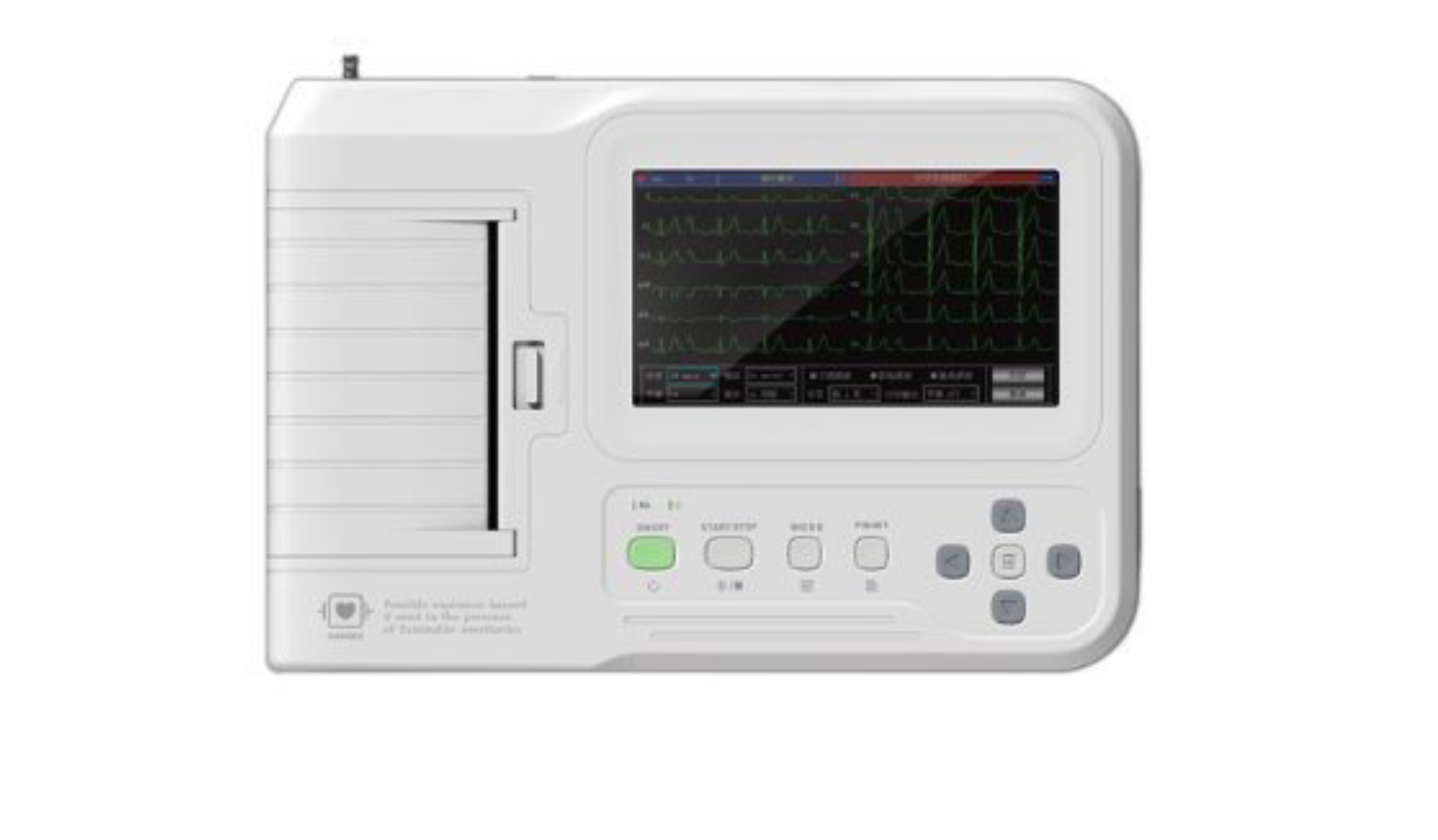

ECG - CONTEC - 600G
ECG - CONTEC - 600G
Couldn't load pickup availability
SPECIFICATIONS:
7" TFT, touch screen, LED backlight
Soft Touch Silicone Buttons
Digital isolation technology and signal PRO-cessing solution, digital filter
Patient management, name and age and ID.
Detail analysis report.
Multi-language options: Germany, France, Italian, Turkey, etc
Built-in lithium rechargeable battery, wide thermal printing system
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
No USB Port
Auto-measurement, auto-analysis, and auto-interpretation.
Supplied with Disposable Electrodes
|
MODEL: |
ECG 600G |
|
Product safety Type |
Class I, type CF applied part, which has defibrillation – proof applied part |
|
Leads |
Standard 12 Leads |
|
Display |
7” TFT Touch Screen, LED backlight |
|
Input |
Floating; protection against defibrillator effect. |
|
Input impedance |
≥ 50M |
|
Patient Leak Current |
<10uA |
|
Sampling Rate |
1000Hz |
|
Frequency Response |
0.05 ~ 150Hz (-3dB) |
|
Time Constants |
>3.2s |
|
CMRR |
>100dB |
|
Dimension of Recording Paper |
110mm x 20M, Paper speed 25mm/s, 50mm/s |
|
Sensitivity choice |
5,10,20mm/mV |
|
Measurement parameters |
HR, R-R interval, P-Duration, QRS Duration, Q-T interval, T-Tc, P Axis, QRS Axis, T Axis, R(V5), S (V1), R(V5) + S(V1) |
|
Product Safety Type |
Class I, CF. Defibrillation and pacing protection |
|
Enduring Polarization voltage |
± 300mv |
|
Noise Level |
<15uVp-p |
|
Dimension |
130mm (L) x 74mm (W) x 25mm (H) |
|
Net Weight |
2.3kg |
