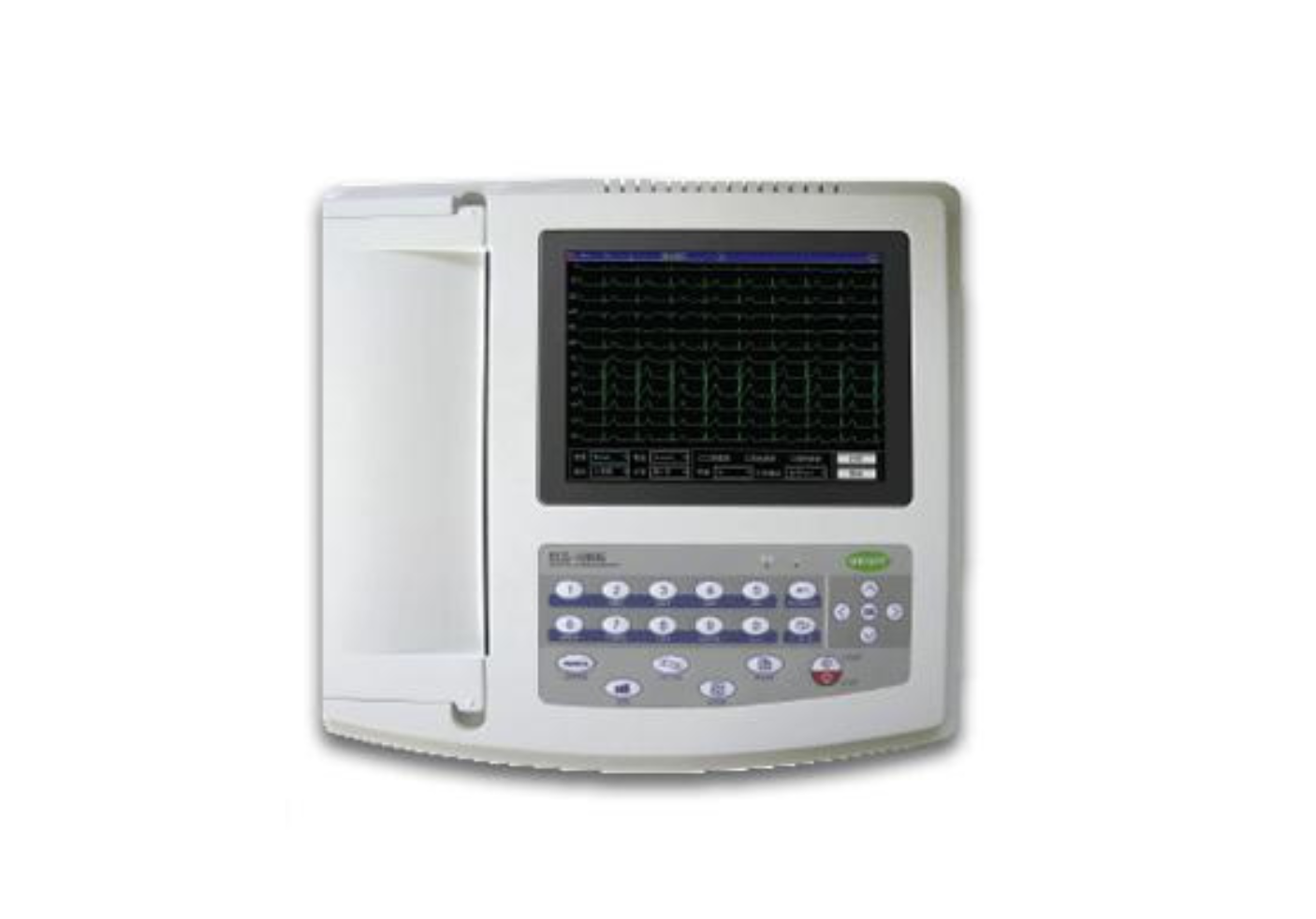

ECG 12 CHANNEL - CONTEC - 1200G

ECG 12 CHANNEL - CONTEC - 1200G

R 19,000.00 ZAR
R 19,000.00 ZAR
Sale Sold out
Shipping calculated at checkout.

FEATURES:

  • ECG1200G 12-channel ECG, gathers 12-lead ECG signals simultaneously and prints out the ECG waveforms with thermal printing system

  • Uses are mainly in Hospitals, Clinics (medical establishments)

  • 800 x 600 dots high resolution colour LCD, Touch Screen

  • Convenient and quick button setup

  • Automatic/manual mode to record and display ECG waveform

  • Auto-measure of ECG waveform parameter

  • Multiple switchable interface language

SPECIFICATIONS:

MODEL:

ECG 1200G

Input Circuit

Floating; protection against defibrillator effect.

Lead

Standard 12 leads

Display

8” TFT Display, 800 x 600 pixels, LED backlight

Patient Current Leakage

10μA

Frequency response

0.05Hz – 150Hz (-3dB)

Input Impedance

50MΩ

Time Constant

>3.2seconds

CMRR

>60dB, ≥100dB (Adding Filter)

EMG Interference filter

35Hz (-3dB)

Recording

Thermal Printing System

Specification of recording paper

210mm x 30m roll paper, high speed paper

Paper speed

Auto record: 25mm/s, 50mm/s, error ± 5%
Rhythm record: 25mm/s, 50mm/s, error ± 5%
Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error ± 5%

Sensitivity selections

5,10,20,40mm/mV, error± 5%. Standard sensitivity is 10mm/mV±0.2mm/mV

Auto Record

Record setup according to auto record format and mode, automatically changing leads, measuring and analysing

Rhythm Record

Record setup according to rhythm record format and mode, automatically measuring and analysing

Manual Record

Record setup according to manual record format, manually changing leads

Measurement parameters

HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc P axis, QRS Axis, T Axis R(V5), S(V1), R(V5) + S(V1)

Product Safety Type

Class I CF applied part, there is defibrillation and pacing protection circuit in it

Enduring Polarization voltage

±500mV

Power Supply AC

AC:100-240V, 50/60Hz DC: 14,8V, 3700mAh rechargeable lithium battery

Noise Level

<15μVp-p

Size

334mm(L) x 320mm (W) x 85mm (H)
