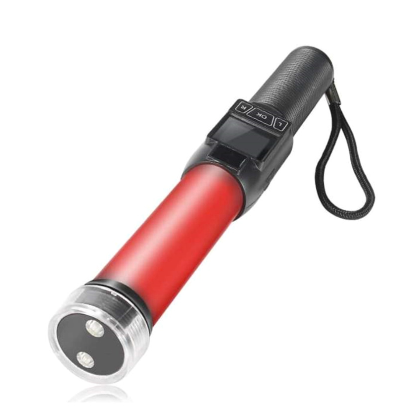

Alcohol Tester CHEETAH 1 - Wand type

1.UK made Electrochemical/Fuel cell sensor with high reliability

2.Quick and Precise Analysis

3.Rapid and convenient, do not need mouthpieces

4.With Traffic baton and flashlight illumination function

5.Large battery capacity, can test for 8 hours.

PRODUCT PICTURE & DESCRIPTION

• L button (left button for records query)
• OK button (on/off button)
• R button (right button for alcohol test)
• USB Port (connect with PC/charger)
• Charging indicator (turn green if fully charged)
• Air inlet (accept breath sample)
• LED
• Torch on/off button (with device power off, press torch button to turn on/off torch.)
• Flashlight button (with device power off, press torch button to turn on/off flashlight)

TECHNICAL SPECIFICATION:

1. Measurement Range 0~100mg/100ml BAC
2. Clearing time <10s
3. Analyzing time <5s
4. Test concentration(mg/100ml)
5. Blowing distance 4‐5cm
6. Weight Approx. 231g
7. Dimensions L(324)mmX Outer Diameter(45)mm
8. When the concentration exceed the set point value,
9. device will give Vibration Alarm
10. Vibration Alarm
11. Camouflage Pouch
12. 2 Pin AC & Car Adapters with Mini USB Cable
13. > 4000 Measurement Memories
14. Flashing Light 2 lights of 3W
15. Downloadable PC Software
16. Continuous Working Time More than 8 hours
17. Battery 1 rechargeable battery, 3.7V/3000mAh
18. Screen OLED Digital Screen
19. Working Temperature 20~98%r.h.
20. Working Pressure 600~1400hPa
21. Measuring Time Adjustable( Minimum time: 1 second)
22. Temperature Range‐storage -30°C~70°C
23. ‐5°C~+45°C
24. Temperature Range operation
25. Motor continuous air extraction, speed no less than 0.8L
26. Way of Breath Sample
27. Extraction
28. Test Mode For quick testing, automatic sampling
29. Measurement Range 0~100mg/100ml BAC
30. Principle of measurement Electrochemical Sensor, alcohol‐specific
